Stream Sampling
Staff use field equipment to monitor the stream for:
- Temperature
- pH (measure of acid/base)
- Dissolved Oxygen
- Conductivity
- Transparency
- Turbidity

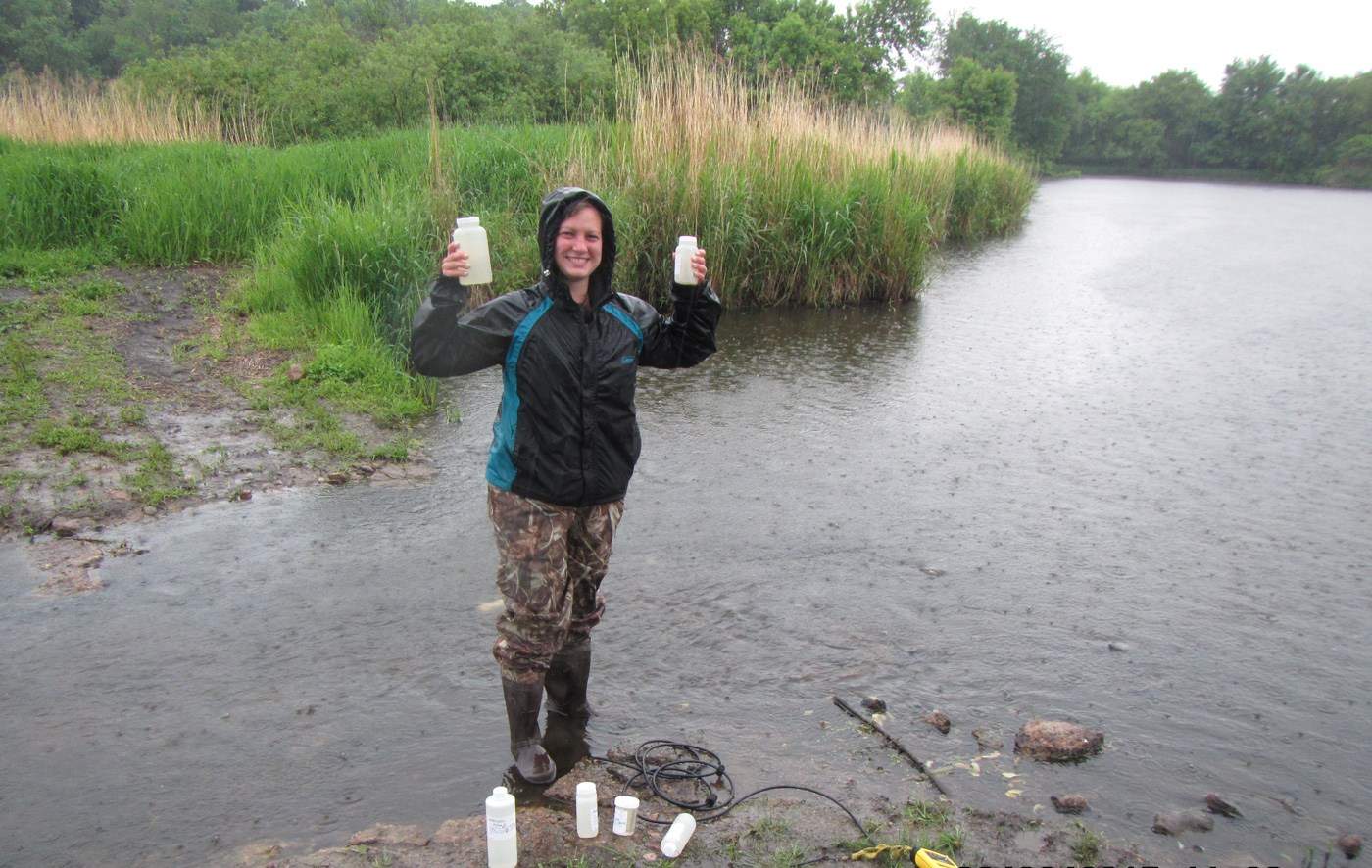

Samples are sent to the lab to be analyzed for parameters such as:
- Total Phosphorus
- Orthophosphate
- Nitrates & Nitrites
- Total Kjeldahl Nitrogen
- Chlorides
- Total Suspended Solids
- Volatile Suspended Solids
- E. coli
- Hardness
- Total Iron
- Dissolved Iron
Flow and Level

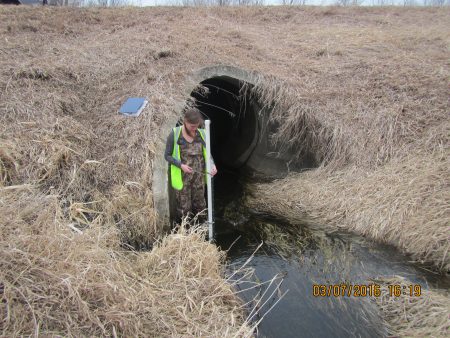

Flow and level monitoring is important in determining pollutant loads (i.e. pounds of phosphorus per year). Staff use a flow meter to measure how many cubic feet of water per second is moving through the stream channel at each site. A level logger is also located at every monitoring site and continually (every 15 minutes) logs the stream stage.
With a reliable amount of flow measurements at various stream stages, staff can create a stage-discharge relationship which can be used to determine the volume of water going through the stream each year. By combining the volume of water and chemistry data, PLSLWD staff can calculate the pollutant load at each monitoring site.
The Ferric Chloride Treatment System Monitoring
The Ferric Chloride Treatment System is a special project that requires weekly sampling. In 1998, the PLSLWD constructed a ferric chloride (FeCl₃) treatment system to remove phosphorus out of stormwater from County Ditch 13, the main inflow to Spring Lake. The system was constructed as part of a Minnesota Pollution Control Agency (MPCA) Clean Water Partnership Implementation Project. In 2013, the District finished updating the Ferric Chloride Facility to meet new Minnesota Pollution Control Agency requirements, and increased the capacity of the system to treat water flowing through the area. Some of the key improvements to the system included upgrades to the line that adds the ferric chloride solution to the water and a bypass that will allow the system to continue to remove phosphorus in high flows.
Excess water, also known as runoff, from melting snow and rainwater in this area generally flows from the southwest to the northeast as it funnels through County Ditch 13 system toward Spring Lake. As this runoff flows through the Ferric Chloride system, the facility injects liquid ferric chloride into the water at a controlled rate in a desiltation pond. Here, the ferric chloride binds to the phosphorus in the water and forms a solid material which settles to the bottom of the pond. This process ties up phosphorus before it continues to flow into Spring Lake.
Removing phosphorus from the water before it reaches Spring Lake is important because Spring Lake is impaired for nutrients, according to federal Environmental Protection Agency (EPA) standards. Phosphorus is a nutrient that is important for animal and plant life in lake ecosystems, but too much phosphorus in the water can cause a chain reaction of undesirable events. If there is an excessive amount of phosphorus available in the water, it can promote harmful algal blooms that cause fish kills and interfere with swimming, fishing and boating.
Outcomes:
During operation in 2015, the system treated approximately 348 million gallons of water. The system reduced the average concentration of Total Phosphorus by 0.11 mg/L (48%) and removed a approximately 402 pounds. The concentration of dissolved phosphorus was reduced by an average of 0.027 mg/L (51%) and approximately 103 pounds were removed from the system. According to the U of MN extension, just one pound of phosphorus can produce 500 pounds of algae!
